# Polynomial Trajectory

Generate polynomial trajectories through waypoints

**Library:**Robotics System Toolbox / Utilities

## Description

The Polynomial Trajectory block generates trajectories to travel through
waypoints at the given time points using either cubic, quintic, or B-spline polynomials. The
block outputs positions, velocities, and accelerations for achieving this trajectory based on
the **Time** input. For B-spline polynomials, the waypoints actually define
the control points for the convex hull of the B-spline instead of the actual waypoints, but
the first and last waypoint are still met.

The initial and final values are held constant outside the time period defined in
**Time points**.

## Ports

### Input

`Time`

— Time point along trajectory

scalar | vector

Time point along the trajectory, specified as a scalar or vector. In general, when specified as a scalar, this value is synced with simulation time and is used to specify the time point for sampling the trajectory. The block outputs a vector of the trajectory variables at that instant in time. If the time is specified as a vector, the block outputs a matrix with each column corresponding to each element of the vector.

**Data Types: **`single`

| `double`

`Waypoints`

— Waypoint positions along trajectory

*n*-by-*p* matrix

Positions of waypoints of the trajectory at given time points, specified as an
*n*-by-*p* matrix, where *n* is
the dimension of the trajectory and *p* is the number of waypoints.
If you specify the **Method** as `B-spline`

, these
waypoints actually define the control points for the convex hull of the B-spline, but
the first and last waypoint are still met.

#### Dependencies

To enable this input, set **Waypoint Source** to
`External`

.

`TimePoints`

— Time points for waypoints of trajectory

*p*-element vector

Time points for waypoints of trajectory, specified as a
*p*-element vector.

#### Dependencies

To enable this input, set **Waypoint Source** to
`External`

.

`VelBC`

— Velocity boundary conditions for waypoints

*n*-by-*p* matrix

Velocity boundary conditions for waypoints, specified as an
*n*-by-*p* matrix. Each row corresponds to the
velocity at each of the *p* waypoints for the respective variable in
the trajectory.

#### Dependencies

To enable this input, set **Method** to ```
Cubic
Polynomial
```

or `Quintic Polynomial`

and
**Parameter Source** to `External`

.

`AccelBC`

— Acceleration boundary conditions for trajectory

*n*-by-*p* matrix

Acceleration boundary conditions for waypoints, specified as an
*n*-by-*p* matrix. Each row corresponds to the
acceleration at each of the *p* waypoints for the respective variable
in the trajectory.

#### Dependencies

To enable this parameter, set **Method** to ```
Quintic
Polynomial
```

and **Parameter Source** to
`External`

.

### Output

`q`

— Position of trajectory

scalar | vector | matrix

Position of the trajectory, specified as a scalar, vector, or matrix. If you
specify a scalar for the **Time** input with an
*n*-dimensional trajectory, the output is a vector with
*n* elements. If you specify a vector of *m*
elements for the **Time** input, the output is an
*n*-by-*m* matrix.

**Data Types: **`single`

| `double`

`qd`

— Velocity of trajectory

scalar | vector | matrix

Velocity of the trajectory, specified as a scalar, vector, or matrix. If you
specify a scalar for the **Time** input with an
*n*-dimensional trajectory, the output is a vector with
*n* elements. If you specify a vector of *m*
elements for the **Time** input, the output is an
*n*-by-*m* matrix.

**Data Types: **`single`

| `double`

`qdd`

— Acceleration of trajectory

scalar | vector | matrix

Acceleration of the trajectory, specified as a scalar, vector, or matrix. If you
specify a scalar for the **Time** input with an
*n*-dimensional trajectory, the output is a vector with
*n* elements. If you specify a vector of *m*
elements for the **Time** input, the output is an
*n*-by-*m* matrix.

**Data Types: **`single`

| `double`

## Parameters

`Waypoint source`

— Source for waypoints

`Internal`

(default) | `External`

Specify `External`

to specify the **Waypoints**
and **Time points** parameters as block inputs instead of block
parameters.

`Waypoints`

— Waypoint positions along trajectory

*n*-by-*p* matrix

Positions of waypoints of the trajectory at given time points, specified as an
*n*-by-*p* matrix, where *n* is the
dimension of the trajectory and *p* is the number of waypoints. If you
specify the **Method** as `B-spline`

, these waypoints
actually define the control points for the convex hull of the B-spline, but the first
and last waypoint are still met.

#### Dependencies

To specify this parameter in the block mask, set **Waypoint
Source** to `Internal`

.

`Time points`

— Time points for waypoints of trajectory

*p*-element vector

Time points for waypoints of trajectory, specified as a *p*-element
vector, where *p* is the number of waypoints.

#### Dependencies

To specify this parameter in the block mask, set **Waypoint
Source** to `Internal`

.

`Method`

— Method for trajectory generation

`Cubic Polynomial`

(default) | `Quintic Polynomial`

| `B-Spline`

Method for trajectory generation, specified as either ```
Cubic
Polynomial
```

, `Quintic Polynomial`

, or
`B-Spline`

.

`Parameter source`

— Source for waypoints

`Internal`

(default) | `External`

Specify `External`

to specify the **Velocity boundary
conditions** and **Acceleration boundary conditions**
parameters as block inputs instead of block parameters.

`Velocity boundary conditions`

— Velocity boundary conditions for waypoints

`zeroes(2,5)`

(default) | *n*-by-*p* matrix

Velocity boundary conditions for waypoints, specified as an
*n*-by-*p* matrix. Each row corresponds to the
velocity at each of the *p* waypoints for the respective variable in
the trajectory.

#### Dependencies

To enable this input, set **Method** to ```
Cubic
Polynomial
```

or `Quintic Polynomial`

.

`Acceleration boundary conditions`

— Acceleration boundary conditions for trajectory

*n*-by-*p* matrix

Acceleration boundary conditions for waypoints, specified as an
*n*-by-*p* matrix. Each row corresponds to the
acceleration at each of the *p* waypoints for the respective variable
in the trajectory.

#### Dependencies

To enable this parameter, set **Method** to ```
Quintic
Polynomial
```

.

`Simulate using`

— Type of simulation to run

`Interpreted execution`

(default) | `Code generation`

`Interpreted execution`

— Simulate model using the MATLAB^{®}interpreter. This option shortens startup time but has a slower simulation speed than`Code generation`

. In this mode, you can debug the source code of the block.`Code generation`

— Simulate model using generated C code. The first time you run a simulation, Simulink^{®}generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time, but the speed of the subsequent simulations is comparable to`Interpreted execution`

.

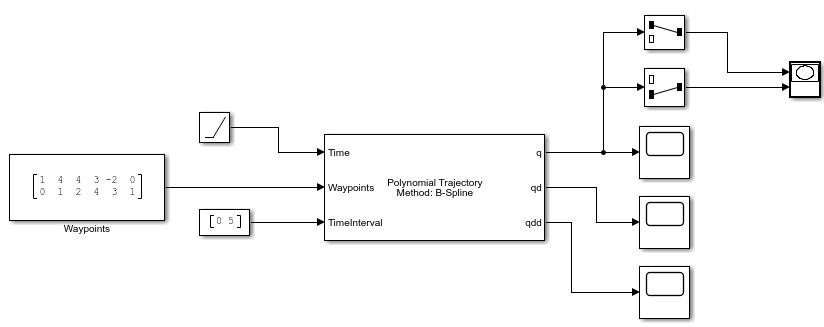

## Model Examples

## References

[1] Farin, Gerald E. *Curves
and Surfaces for Computer Aided Geometric Design: A Practical Guide*. San Diego,
CA: Academic Press, 1993.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

## See Also

### Blocks

### Functions

**Introduced in R2019a**
