# residuez

Z-transform partial-fraction expansion

## Syntax

``[ro,po,ko] = residuez(bi,ai)``
``[bo,ao] = residuez(ri,pi,ki) ``

## Description

example

````[ro,po,ko] = residuez(bi,ai)` finds the residues, poles, and direct terms of a partial fraction expansion of the ratio of numerator and denominator polynomials, `b` and `a`.```
````[bo,ao] = residuez(ri,pi,ki) ` with three input arguments and two output arguments, converts the partial fraction expansion back to polynomials with coefficients in row vectors `b` and `a`.```

## Examples

collapse all

Compute the partial-fraction expansion corresponding to the third-order IIR lowpass filter described by the transfer function

`$H\left(z\right)=\frac{0.05634\left(1+{z}^{-1}\right)\left(1-1.0166{z}^{-1}+{z}^{-2}\right)}{\left(1-0.683{z}^{-1}\right)\left(1-1.4461{z}^{-1}+0.7957{z}^{-2}\right)}.$`

Express the numerator and denominator as polynomial convolutions.

```b0 = 0.05634; b1 = [1 1]; b2 = [1 -1.0166 1]; a1 = [1 -0.683]; a2 = [1 -1.4461 0.7957]; b = b0*conv(b1,b2); a = conv(a1,a2);```

Compute the residues, poles, and direct terms of the partial-fraction expansion.

`[r,p,k] = residuez(b,a)`
```r = 3×1 complex -0.1153 - 0.0182i -0.1153 + 0.0182i 0.3905 + 0.0000i ```
```p = 3×1 complex 0.7230 + 0.5224i 0.7230 - 0.5224i 0.6830 + 0.0000i ```
```k = -0.1037 ```

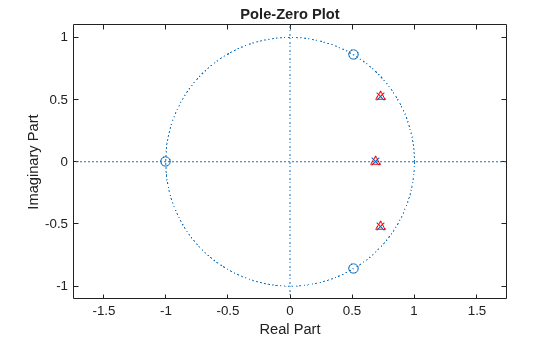

Plot the poles and zeros of the transfer function and overlay the poles you just found.

```zplane(b,a) hold on plot(p,'^r') hold off``` Use `residuez` again to reconstruct the transfer function.

`[bn,an] = residuez(r,p,k)`
```bn = 1×4 0.0563 -0.0009 -0.0009 0.0563 ```
```an = 1×4 1.0000 -2.1291 1.7834 -0.5435 ```

## Input Arguments

collapse all

Polynomial coefficients, specified as vectors. Vectors `b` and `a` specify the coefficients of the polynomials of the discrete-time system b(z)/a(z) in descending powers of z.

`$\begin{array}{c}B\left(z\right)={b}_{0}+{b}_{1}{z}^{-1}+{b}_{2}{z}^{-2}+\cdots +{b}_{m}{z}^{-m}\\ A\left(z\right)={a}_{0}+{a}_{1}{z}^{-1}+{a}_{2}{z}^{-2}+\cdots +{a}_{n}{z}^{-n}\end{array}$`

If there are multiple roots and `a` > `n-1`,

`$\frac{B\left(z\right)}{A\left(z\right)}=\frac{r\left(1\right)}{1-p\left(1\right){z}^{-1}}+\cdots +\frac{r\left(n\right)}{1-p\left(n\right){z}^{-1}}+k\left(1\right)+k\left(2\right){z}^{-1}+\cdots +k\left(m-n+1\right){z}^{-\left(m-n\right)}$`

Residues of the partial fraction, specified as a vector.

Poles of the partial fraction, specified as a vector.

Direct terms, specified as a row vector.

## Output Arguments

collapse all

Residues of the partial fraction, returned as a vector.

Pole of the partial fraction, returned as a vector. The number of poles is

```n = length(a)-1 = length(r) = length(p) ```

If `p(j) = ... = p(j+s-1)` is a pole of multiplicity `s`, then the expansion includes terms of the form

`$\frac{r\left(j\right)}{1-p\left(j\right){z}^{-1}}+\frac{r\left(j+1\right)}{{\left(1-p\left(j\right){z}^{-1}\right)}^{2}}+\cdots +\frac{r\left(j+{s}_{r}-1\right)}{{\left(1-p\left(j\right){z}^{-1}\right)}^{s}}$`

Direct terms, returned as a row vector. The direct term coefficient vector `k` is empty if `length(b)` is less than `length(a)`; otherwise:

```length(k) = length(b) - length(a) + 1 ```

Polynomial coefficients, returned as vectors.

## Algorithms

`residuez` converts a discrete time system, expressed as the ratio of two polynomials, to partial fraction expansion, or residue, form. It also converts the partial fraction expansion back to the original polynomial coefficients.

### Note

Numerically, the partial fraction expansion of a ratio of polynomials is an ill-posed problem. If the denominator polynomial is near a polynomial with multiple roots, then small changes in the data, including round-off errors, can cause arbitrarily large changes in the resulting poles and residues. You should use state-space or pole-zero representations instead.

`residuez` applies standard MATLAB® functions and partial fraction techniques to find `r`, `p`, and `k` from `b` and `a`. It finds

• The direct terms `a` using `deconv` (polynomial long division) when `length(b)` > `length(a)-1`.

• The poles using `p` = `roots``(a)`.

• Any repeated poles, reordering the poles according to their multiplicities.

• The residue for each nonrepeating pole pj by multiplying b(z)/a(z) by 1/(1 - pjz−1) and evaluating the resulting rational function at z = pj.

• The residues for the repeated poles by solving

```S2*r2 = h - S1*r1 ```

for `r2` using `\`. `h` is the impulse response of the reduced b(z)/a(z), `S1` is a matrix whose columns are impulse responses of the first-order systems made up of the nonrepeating roots, and `r1` is a column containing the residues for the nonrepeating roots. Each column of matrix `S2` is an impulse response. For each root pj of multiplicity sj, `S2` contains sj columns representing the impulse responses of each of the following systems.

`$\frac{1}{1-{p}_{j}{z}^{-1}},\frac{1}{{\left(1-{p}_{j}{z}^{-1}\right)}^{2}},\cdots ,\frac{1}{{\left(1-{p}_{j}{z}^{-1}\right)}^{{s}_{j}}}$`

The vector `h` and matrices `S1` and `S2` have `n` `+` `xtra` rows, where `n` is the total number of roots and the internal parameter `xtra`, set to 1 by default, determines the degree of over-determination of the system of equations.

### Note

The `residue` function in the standard MATLAB language is very similar to `residuez`. It computes the partial fraction expansion of continuous-time systems in the Laplace domain (see reference ), rather than discrete-time systems in the z-domain as does `residuez`.

 Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. 2nd Ed. Upper Saddle River, NJ: Prentice Hall, 1999.
