How to Use Simulink for ISO 26262 Projects

Automotive engineers working on safety-related, embedded systems for traditional and autonomous vehicles are looking for efficient ways to achieve the process rigor imposed by ISO^® 26262^[1], a functional safety standard for road vehicle development.

With all the media attention paid to autonomous vehicles, there is no lack of advice. Too often, though, this advice focuses on the latest coding method or bug-zapping tool. As industry experts have long recognized, safety is more about getting the system and its requirements right than about the software and how it was coded^[2].

With continuous- and discrete-time simulation as its backbone, Model-Based Design with Simulink^® lets you design and test your full system under a wide range of driving conditions and fault scenarios long before you go to the proving grounds or perform fleet tests. It also supports process activities specified by ISO 26262, including tool qualification. IEC Certification Kit details this support and provides tool certificates and reports from the international certification authority TÜV SÜD.

This article presents the TÜV SÜD–approved workflow (Figure 1) for using Simulink for ISO 26262 projects, covering the following activities:

• ISO 26262-3:2018 concept phase
  • Item definition
  • Hazard Analysis and Risk Assessment (HARA)
  • Functional safety concept
• ISO 26262-4:2018 product development at the system level
  • Technical safety concept
• ISO 26262-6:2018 product development at the software level
  • Requirements development
  • Design modeling
  • Design verification
  • Code generation
  • Code verification
  • Software safety analysis
• ISO 26262-8:2018 supporting processes
  • Tool qualification

ISO 26262-3:2018 Concept Phase

Item Definition

The concept phase begins with the item definition, where the system’s intended functionality, boundaries, interfaces, and operational scenarios are identified. System Composer™ can help capture this information as a preliminary architectural model by defining system elements, interfaces, allocations, and operational views. Requirements Toolbox™ can manage the item definition as traceable requirements linked to architectural elements (Figure 2).

HARA

Hazard Analysis and Risk Assessment (HARA) is then performed to identify potential vehicle-level hazards caused by malfunctioning behavior and to evaluate the risks associated with such hazards. Each hazardous event is classified in terms of severity, exposure, and controllability. Together, these events determine the Automotive Safety Integrity Level (ASIL). Using the Safety Analysis Manager (R2023b or later), part of Simulink Fault Analyzer™, you can structure HARA information, assess risks, and maintain traceability between hazards and system models (Figure 3).

Functional Safety Concept

The HARA results serve as the basis for deriving safety goals. These top-level safety requirements guide the subsequent product development activities at the system level. Safety goals and their traceability to models and tests can be managed using Requirements Toolbox.

ISO 26262-4:2018 Product Development at the System Level

At the system level, the functional safety concept is refined into the technical safety concept, defining the system architecture and safety mechanisms required to satisfy functional safety requirements. Simulink, System Composer, and Requirements Toolbox support this process by enabling engineers to model system architectural designs, allocate requirements to system elements maintaining traceability to upstream requirements, and validate system behavior through simulation (Figure 4).

ISO 26262 recommends both inductive and deductive safety analysis techniques such as Failure Modes and Effects Analysis (FMEA) and Fault Tree Analysis (FTA) to evaluate system-level failures and verify that the architecture satisfies safety requirements. Using the Safety Analysis Manager in Simulink Fault Analyzer, you can perform FMEA and FTA for your system architectural models (Figures 5 and 6). FMEA provides a bottom-up analysis of component-level failures and their effects, while FTA provides a top-down analysis of how combinations of faults can lead to system-level hazards.

Simulink Fault Analyzer lets you link elements in the safety analysis to architectural elements, requirements, and verification artifacts, enabling traceability across all of the system-level safety activities.

ISO 26262-6:2018 Product Development at the Software Level

ISO 26262-6 includes guidance for manual design and code as well as for Model-Based Design. In particular, it lists five different use cases of Model-Based Design^[4]:

• Specification of software safety requirements
• Development of the software architectural design
• Design and implementation of software units, with or without code generation
• Design, implementation, and integration of software components, including code generation from software component models
• Static and/or dynamic verification

It also acknowledges some of the benefits of using Model-Based Design^[4]:

Beside the specific reasons for using MBD (e.g. simulation or code generation), an adequately defined syntax and semantics is a basis for the achievement of criteria such as comprehensibility, unambiguity, correctness, consistency and verifiability of information or work products described by models especially when different parties are collaborating.

The standard mentions graphical modeling and notes that modeling tools employ semi-formal methods for software development. It states that modeling not only captures the functionality to be realized (the embedded software) but also enables simulation of the real physical system (vehicle model and environment model) to produce a full system model:

Models, together with the modelling and coding guidelines, can be used to design, implement and integrate software at a higher level of abstraction.

and

Models can also serve as a means to enable or support verification activities (e.g. plant model needed for the hardware-in-the-loop testing of closed-loop controls by simulating the environment of the device under test). The use of models for verification purposes may enable the early and efficient detection of faults/failures in work products (including software), more efficient test case generation, highly automated testing, or even formal verification techniques.

Figure 7 shows a typical Simulink closed-loop system model. It consists of a controller and plant, plus signal processors. In ISO 26262, the system requirements and architectural design specification constitute an input to software development, but it is much more than that, as safety is fundamentally a systems issue^[2].

Your system architectural elements allocated to software are typically elaborated until they become a software blueprint of sufficient detail for you to generate production code. ISO 26262 describes this model elaboration process as “model refinement”^[2]:

Models themselves may consist of various hierarchical refinement levels or references to refined models at a lower hierarchical level (e.g. hierarchical structure with black box and white box views for each model element.).

Specification and Management of Safety Requirements

You start the product development process at the software level by authoring software safety and non-safety requirements. ISO 26262 recommends that you verify the software architecture design using “bi-directional traceability between the software architectural design and the software safety requirements.”

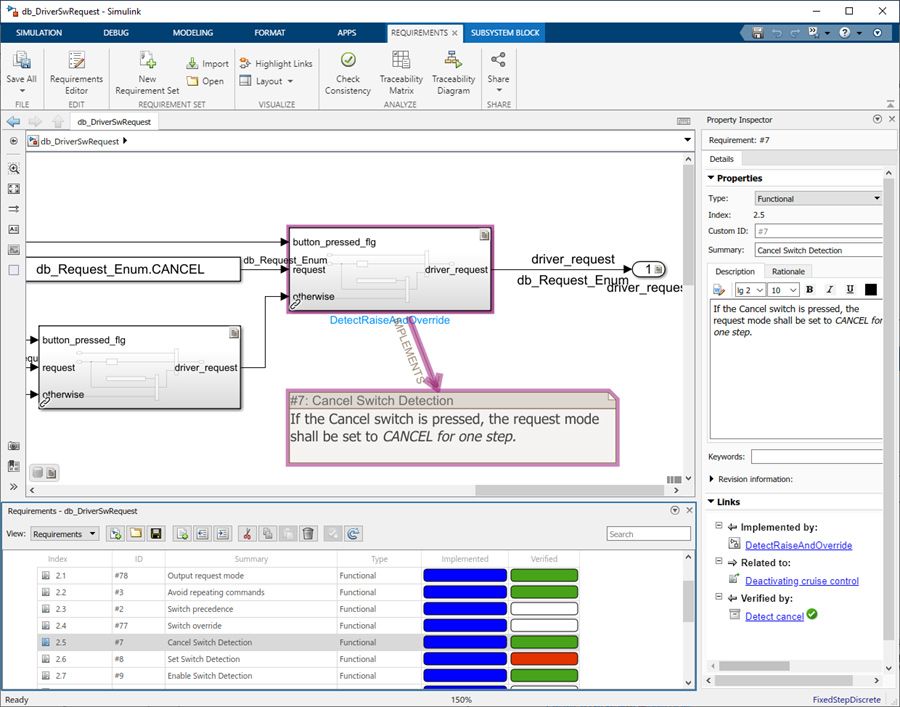

To achieve this, you can use Requirements Toolbox to author and trace requirements to models, tests, and code. Requirements Toolbox supports bidirectional tracing for other tools, including Microsoft^® Word^®, Microsoft Excel^®, and IBM^® Rational^® DOORS^®. Further, you can use Simulink and Requirements Toolbox to create formal and unambiguous requirement specifications. The implementation and verification status of the requirements is monitored and managed within Requirements Toolbox. If desired, links to and from requirements can appear in the generated code (Figure 8).

Design Modeling

You can use Model-Based Design with Simulink and System Composer to specify your software architectural design. This includes the static (i.e., structure with block hierarchies and interface information) and dynamic aspects (i.e., behavior with functions, logic, data, and control flow).

With Simulink, you can also refine functional models of your software units and components from high-level executable specification to a detailed design ready for production code generation. Typical refinements include:

• Converting blocks from continuous time (S domain) to discrete time (Z domain) using the Simulink Control Design™ discretization tool
• Converting data from double precision to single precision or fixed point using Fixed-Point Designer™
• Adding diagnostics, mode logic, state machines, and scheduling using Stateflow^®

For ASIL A through D, ISO 26262 highly recommends using modeling guidelines. For this, you can use MAB Style Guidelines^[5] and the high-integrity guidelines for ISO 26262 provided in Simulink. Simulink Check™ automates checking for both guidelines. It can flag issues, such as the insertion of noncompliant blocks, during edit time. You can also include your own guidelines and checks that can also be configured as edit-time checks.

Design Verification

ISO 26262 recommends a number of static and dynamic methods for verifying software designs and implementations, including unit- and integration-level activities. For Model-Based Design, it states that “depending on the software development process the test objects can be the code derived from this model or the model itself, or both.”

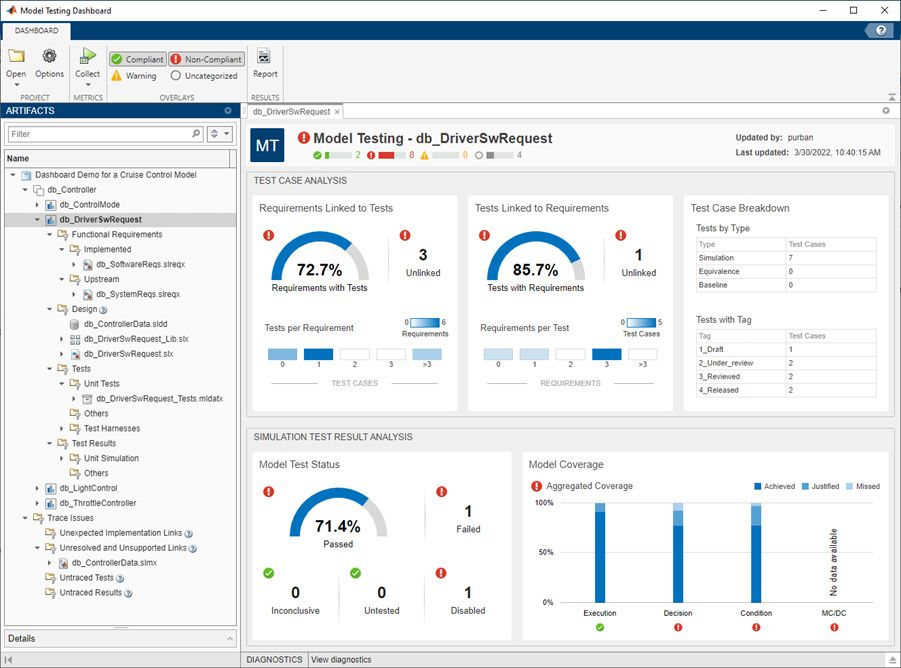

Simulink Test™ provides a framework for ISO 26262 verification and validation activities within Simulink. You can use it for authoring, managing, and executing systematic, simulation-based tests for models and for code generated from models. Figure 9 shows an example test sequence and assessment blocks.

The TÜV SÜD report in IEC Certification Kit (for ISO 26262) clarifies the role of Simulink Test in automating verification and validation:

[Simulink Test] allows the automation of core verification and validation activities for Simulink models and generated code. The following use cases reflect activities that are required in a software development process according to the Functional Safety Standards ISO 26262:

• Development and execution of tests for Simulink models
• Development and execution of tests for back-to-back testing between model and code
• Assessment of test results
• Generation of test reports
• Identification of traceability between requirements and tests cases

ISO 26262 recommends structural coverage analysis to determine test completeness and identify unintended functionality. It lists three methods for increasing rigor, with the last two being highly recommended for ASIL-D:

• Statement coverage
• Branch coverage
• MC/DC (Modified Condition/Decision Coverage)

The standard notes that for Model-Based Design, “the analysis of structural coverage can be performed at the model level using analogous structural coverage metrics for models.” It goes on to state that if the structural coverage is insufficient, “additional test cases shall be specified or a rationale shall be provided.”

Simulink Coverage™ provides structural coverage analysis for models and generated code, and it is easily enabled for test execution with Simulink Test. If your model coverage is insufficient, you can use Simulink Design Verifier™ to automatically generate additional test cases to achieve the required coverage, including MC/DC. Simulink Check includes the Model Testing Dashboard for assessing requirements-based test cases and results for completeness and quality metrics in accordance with ISO 26262-6:2018, Clause 9.4.3 and Clause 9.4.5 (Figure 10).

For fault injection testing, Simulink Fault Analyzer™ lets you define and inject faults into Simulink models, set activation conditions, and observe how the system responds. You can link faults to requirements and safety analyses such as FMEA to support traceability and complete safety verification (Figure 11).

IEC Certification Kit provides tool qualification support, with TÜV SÜD certificates and reports, for Simulink Check, Simulink Coverage (including model and code coverage), Simulink Design Verifier, and Simulink Test.

Code Generation

ISO 26262 states that “the implementation of the software units includes the generation of source code and the translation into object code.” To achieve this, you can use Embedded Coder^® to generate C, C++, and AUTOSAR code from your Simulink and System Composer models. The code can comply with MISRA C^®:2023, MISRA C:2025, or MISRA C++:2008 automatic code guidelines^[6]. ISO 26262 notes that code guidelines for Model-Based Design and manual code can differ and lists MISRA^® as an example.

IEC Certification Kit provides tool qualification support for Embedded Coder (including ASIL A through D) for C, C++, and AUTOSAR. Its TÜV SÜD certification report states:

Embedded Coder fulfills the requirements of ISO 26262 regarding tool support and automation.

The Embedded Coder is usually applied in one of the three following use cases:

1. Generating C Code for the Model Used for Production Code Generation
2. Generating C++ Code for the Model Used for Production Code Generation
3. Generating C/C++ Code and Files for AUTOSAR Application Software Components from the Model Used for Production Code Generation

Embedded Coder provides options for optimizing code for memory and speed. In addition, you can generate processor-specific optimizations that leverage hardware accelerators such as SIMD^® for ARM^® and Intel^®. You can verify that the optimized code matches the simulation results within prescribed tolerances using model-to-code, processor-in-the-loop (PIL) testing as described in ISO 26262.

Executable object code is produced from the generated source code using your compiler and linker. The workflow in IEC Certification Kit allows coder, compiler, and processor optimizations, which are critical for mass-production ECUs, as long as PIL testing is used to verify the executable object code.

Code Verification

ISO 26262 provides several options for verifying software designs and implementations. With Model-Based Design, you can compare model coverage with code coverage using Simulink Coverage during software-in-the-loop (SIL) testing, or you can use Simulink Code Inspector™.

Lastly, you can check MISRA compliance with Polyspace Bug Finder™. Use of MISRA checking and code coverage analysis is especially helpful if your project includes a mixture of generated and manually coded software. For added rigor, you can use Polyspace Code Prover™ to prove the absence of run-time errors such as divide-by-zero.

IEC Certification Kit provides tool qualification support, with TÜV SÜD certificates and reports, for Polyspace^® products. After compiling and generating the executable code, you can reuse model tests on the code executing on the target processor using PIL testing (Figure 12).

ISO 26262 highly recommends back-to-back testing for ASILs C and D. It notes the importance of testing in a representative target hardware environment and stresses the need to be aware of differences between the test and hardware environments:

Differences between the test environment and the target environment can arise in the source code or object code, for example, due to different bit widths of data words and address words of the processors.

But as every computer scientist should know^[7], there are many sources for potential numeric differences across platforms, especially for floating-point data. Some begin as minor but accumulate and grow, especially in feedback control systems. Thus, ISO 26262 lists various in-the-loop methods for back-to-back testing:

Software unit testing can be executed in different environments, for example:

—model-in-the-loop tests;
—software-in-the-loop tests;
—processor-in-the-loop tests; and
—hardware-in-the-loop tests.

Simulink Test automates in-the-loop testing, including SIL and PIL with Embedded Coder and HIL with Simulink Real-Time™, and provides pass/fail reports with coverage metrics from Simulink Coverage.

Software Safety Analysis

ISO 26262 recommends performing safety-oriented analysis at the software level to identify or confirm safety-related parts of the software and to verify that safety measures are effective and effectively realized in the architectural designs. Like system-level FMEA, you can use Simulink Fault Analyzer to define software failure modes, link them to software components and requirements, and evaluate their effects on the system (i.e., violation of safety goals).

ISO 26262 also recommends Dependent Failure Analysis (DFA) to identify and evaluate potential dependencies between elements that could lead to common-cause or cascading failures. DFA helps ensure sufficient independence between safety-related elements and validate the robustness of the software architecture (Figure 13).

These capabilities support traceability between software components, safety requirements, and verification activities, enabling a comprehensive safety analysis workflow at the software level.

ISO 26262-8:2018 Supporting Processes

ISO 26262-8 describes additional supporting processes, including change control, configuration management, and documentation. These processes are supported by Simulink Projects, Simulink model differencing and merge, and Simulink Report Generator™, respectively.

The standard also provides tool classification and qualification guidance. It requires users to qualify the tools for their specific projects. IEC Certification Kit effectively prequalifies tools by providing typical use cases, reference workflows, tool classification analysis, software tool documentation, tool qualification plans, and validation tests. If your project involves the supported use cases and follows the reference workflow, you can produce the required tool qualification artifacts by adapting the certification kit’s template documents and executing the validation tests in your development environment.

TÜV SÜD reviews and audits MathWorks^® tool development and quality processes, as well as bug reporting capabilities and tool prequalification artifacts, and certifies the results at each product release. IEC Certification Kit includes these TÜV SÜD certificates and reports, which are predicated on the need to follow an appropriate verification and validation workflow. The kit provides reference workflows based on typical tool use cases, such as those highlighted in this article.

The kit provides more detailed information, including a mapping of ISO 26262 objectives to Simulink supporting capabilities (Figure 14).

ISO 26262:2018 acknowledges that Simulink and Stateflow are suitable for Software Architecture and Software Unit Design Notation and as a basis for automatic code generation (Figure 15).

Note that the use of qualified tools does not ensure the safety of the software or system under consideration.
