Hardware-Software Prototyping of a Lane Detection Design | Vision Processing for FPGA, Part 5

From the series: Vision Processing for FPGA

Vision processing algorithms are compute-intensive to simulate. Once a design has been verified as much as possible with simulation, prototyping on an FPGA development kit allows for real-time processing of live video input. This example adds a hardware-software interface to the lane detection example and uses the Computer Vision Toolbox™ Support Package for Xilinx® Zynq®-Based Hardware to efficiently build a working prototype.

Learn how to:

• Use HDMI video input to Simulink®
• Design hardware-software interface control functionality
• Generate HDL and software drivers with AXI4 interfaces
• Deploy software to a connected Xilinx Zynq device
• Run a prototype in external mode

Published: 8 Dec 2017

Download Code and Files

Get HDL Coder Self-Guided Tutorial

Learn More

Get HDL Coder Self-Guided Tutorial
Related Information
Request Vision HDL Toolbox Trial

Feedback

Related Videos:

The new release of MATLAB is here! I was looking through it, and one thing that caught my eye the most was some face detection algorithms have been added. This is great because I get questions about it a fair amount. I am lending the blog to my frien

MATLAB 2012a: Face Detection

Discover how to use <code>configureKalmanFilter</code> and <code>vision.KalmanFilter</code> to track a moving object in video. Learn how to handle the challenges of inaccurate or missing object detection while keeping track of its location in video.

Introduction to Kalman Filters for Object Tracking

Use the Computer Vision Toolbox Support Package for Xilinx Zynq based hardware to prototype a Vision HDL Toolbox corner detection design on an FPGA development board.

Targeting a Corner Detection Design to FPGA Hardware

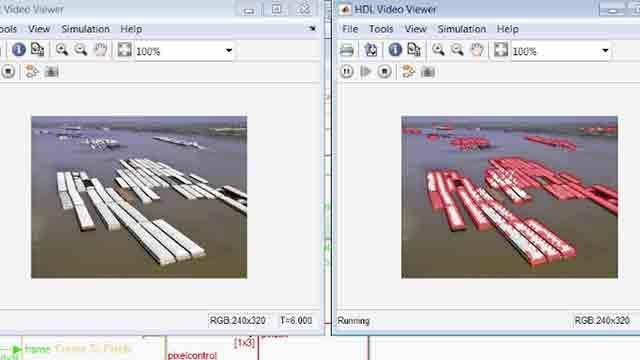

Use Vision HDL Toolbox to create a streaming hardware-ready implementation of a corner detection algorithm.

Corner Detection Design with Vision HDL Toolbox

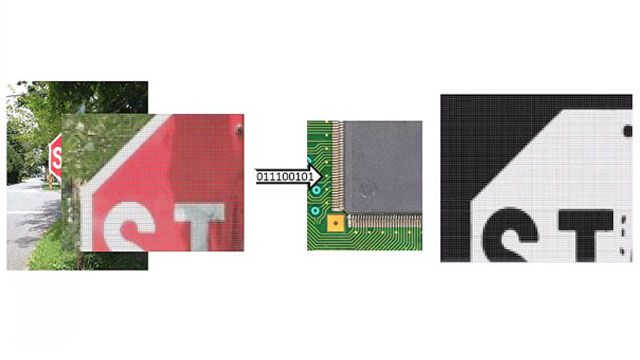

Design image processing, video, and computer vision systems for FPGAs and ASICs using Vision HDL Toolbox.
