Local interpretable model-agnostic explanations (LIME)

LIME explains a prediction of a machine learning model (classification or regression) for a query point by finding important predictors and fitting a simple interpretable model.

You can create a `lime`

object for a machine learning model with a
specified query point (`queryPoint`

) and a specified number of important
predictors (`numImportantPredictors`

). The software generates a synthetic
data set, and fits a simple interpretable model of important predictors that effectively
explains the predictions for the synthetic data around the query point. The simple model can
be a linear model (default) or decision tree model.

Use the fitted simple model to explain a prediction of the machine learning model locally,
at the specified query point. Use the `plot`

function to
visualize the LIME results. Based on the local explanations, you can decide whether or not to
trust the machine learning model.

Fit a new simple model for another query point by using the `fit`

function.

creates a `results`

= lime(`blackbox`

,'CustomSyntheticData',`customSyntheticData`

)`lime`

object using the pregenerated, custom synthetic
predictor data set `customSyntheticData`

. The
`lime`

function computes the predictions for the samples in
`customSyntheticData`

.

also finds the specified number of important predictors and fits a linear simple model
for the query point `results`

= lime(___,'QueryPoint',`queryPoint`

,'NumImportantPredictors',`numImportantPredictors`

)`queryPoint`

. You can specify
`queryPoint`

and `numImportantPredictors`

in
addition to any of the input argument combinations in the previous syntaxes.

specifies additional options using one or more name-value pair arguments. For example,
`results`

= lime(___,`Name,Value`

)`'SimpleModelType','tree'`

specifies the type of simple model as a
decision tree model.

`blackbox`

— Machine learning model to be interpretedregression model object | classification model object | function handle

Machine learning model to be interpreted, specified as a function handle or a full or compact regression or classification model object.

Function handle — You can specify a function handle that accepts predictor data and returns a prediction for each observation in the predictor data. You must provide the predictor data using

`X`

or`customSyntheticData`

and specify the`'Type'`

name-value pair argument.Full or compact model object — You can specify a full or compact regression or classification model object, which has a

`predict`

object function. The software uses the`predict`

function to compute the predictions for the query point and the synthetic predictor data set.**Regression Model Object**Supported Model Full or Compact Regression Model Object Ensemble of regression models `RegressionEnsemble`

,`RegressionBaggedEnsemble`

,`CompactRegressionEnsemble`

Gaussian kernel regression model using random feature expansion `RegressionKernel`

Gaussian process regression `RegressionGP`

,`CompactRegressionGP`

Linear regression for high-dimensional data `RegressionLinear`

Regression tree `RegressionTree`

,`CompactRegressionTree`

Support vector machine regression `RegressionSVM`

,`CompactRegressionSVM`

**Classification Model Object**Supported Model Full or Compact Classification Model Object Discriminant analysis classifier `ClassificationDiscriminant`

,`CompactClassificationDiscriminant`

Multiclass model for support vector machines or other classifiers `ClassificationECOC`

,`CompactClassificationECOC`

Ensemble of learners for classification `ClassificationEnsemble`

,`CompactClassificationEnsemble`

,`ClassificationBaggedEnsemble`

Gaussian kernel classification model using random feature expansion `ClassificationKernel`

*k*-nearest neighbor classifier`ClassificationKNN`

Linear classification model `ClassificationLinear`

Multiclass naive Bayes model `ClassificationNaiveBayes`

,`CompactClassificationNaiveBayes`

Support vector machine classifier for one-class and binary classification `ClassificationSVM`

,`CompactClassificationSVM`

Binary decision tree for multiclass classification `ClassificationTree`

,`CompactClassificationTree`

If you specify a compact model object, which does not contain predictor data, then you must provide predictor data using

`X`

or`customSyntheticData`

.`lime`

does not support a model object trained with a sparse matrix. When you train a model, use a full numeric matrix or table for the predictor data where rows correspond to individual observations.

`X`

— Predictor datanumeric matrix | table

Predictor data, specified as a numeric matrix or table. Each row of
`X`

corresponds to one observation, and each column corresponds
to one variable.

`X`

must be consistent with the predictor data that trained
`blackbox`

,
stored in either `blackbox.X`

or
`blackbox.Variables`

. The specified value must not contain a
response variable.

`X`

must have the same data types as the predictor variables (for example,`trainX`

) that trained`blackbox`

. The variables that make up the columns of`X`

must have the same number and order as in`trainX`

.If you train

`blackbox`

using a numeric matrix, then`X`

must be a numeric matrix.If you train

`blackbox`

using a table, then`X`

must be a table. All predictor variables in`X`

must have the same variable names and data types as in`trainX`

.

`lime`

does not support a sparse matrix.

If `blackbox`

is a compact machine learning model object or a
function handle, you must provide `X`

or `customSyntheticData`

. If `blackbox`

is a full machine
learning model object and you specify this argument, then `lime`

does not use the predictor data in `blackbox`

. it uses the
specified predictor data only.

**Data Types: **`single`

| `double`

`customSyntheticData`

— Pregenerated, custom synthetic predictor data set`[]`

(default) | numeric matrix | tablePregenerated, custom synthetic predictor data set, specified as a numeric matrix or table.

If you provide a pregenerated data set, then `lime`

uses the
provided data set instead of generating a new synthetic predictor data set.

`customSyntheticData`

must be consistent with the predictor
data that trained `blackbox`

,
stored in either `blackbox.X`

or
`blackbox.Variables`

. The specified value must not contain a
response variable.

`customSyntheticData`

must have the same data types as the predictor variables (for example,`trainX`

) that trained`blackbox`

. The variables that make up the columns of`customSyntheticData`

must have the same number and order as in`trainX`

If you train

`blackbox`

using a numeric matrix, then`customSyntheticData`

must be a numeric matrix.If you train

`blackbox`

using a table, then`customSyntheticData`

must be a table. All predictor variables in`customSyntheticData`

must have the same variable names and data types as in`trainX`

.

`lime`

does not support a sparse matrix.

If `blackbox`

is a compact machine learning model object or a
function handle, you must provide `X`

or
`customSyntheticData`

. If `blackbox`

is a full
machine learning model object and you specify this argument, then
`lime`

does not use the predictor data in
`blackbox`

; it uses the specified predictor data only.

**Data Types: **`single`

| `double`

| `table`

`queryPoint`

— Query pointrow vector of numeric values | single-row table

Query point at which `lime`

explains a prediction, specified as
a row vector of numeric values or a single-row table. `queryPoint`

must have the same data type and number of columns as `X`

,
`customSyntheticData`

, or the predictor data in `blackbox`

.

If you specify `numImportantPredictors`

and `queryPoint`

, then the
`lime`

function fits a simple model when creating a
`lime`

object.

**Example: **`blackbox.X(1,:)`

specifies the query point as the first
observation of the predictor data in the full machine learning model
`blackbox`

.

**Data Types: **`single`

| `double`

| `table`

`numImportantPredictors`

— Number of important predictors to use in simple modelpositive integer scalar value

Number of important predictors to use in the simple model, specified as a positive integer scalar value.

If

`'SimpleModelType'`

is`'linear'`

, then the software selects the specified number of important predictors and fits a linear model of the selected predictors.If

`'SimpleModelType'`

is`'tree'`

, then the software specifies the maximum number of decision splits (or branch nodes) as the number of important predictors so that the fitted decision tree uses at most the specified number of predictors.

If you specify `numImportantPredictors`

and `queryPoint`

,
then the `lime`

function fits a simple model when creating a
`lime`

object.

**Data Types: **`single`

| `double`

Specify optional
comma-separated pairs of `Name,Value`

arguments. `Name`

is
the argument name and `Value`

is the corresponding value.
`Name`

must appear inside quotes. You can specify several name and value
pair arguments in any order as
`Name1,Value1,...,NameN,ValueN`

.

`lime`

(`blackbox`

,`'QueryPoint'`

,q,`'NumImportantPredictors'`

,n,'SimpleModelType','tree')

specifies the query point as `q`

, the number of important predictors to
use for the simple model as `n`

, and the type of simple model as a
decision tree model. `lime`

generates samples of a synthetic predictor
data set, computes the predictions for the samples, and fits a decision tree model for the
query point using at most the specified number of predictors.`'DataLocality'`

— Locality of synthetic data for data generation`'global'`

(default) | `'local'`

Locality of the synthetic data for data generation, specified as the
comma-separated pair consisting of `'DataLocality'`

and
`'global'`

or `'local'`

.

`'global'`

— The software estimates distribution parameters using the whole predictor data set (`X`

or the predictor data in`blackbox`

). The software generates a synthetic predictor data set with the estimated parameters and uses the data set for simple model fitting of any query point.`'local'`

— The software estimates the distribution parameters using the*k*-nearest neighbors of a query point, where*k*is the`'NumNeighbors'`

value. The software generates a new synthetic predictor data set each time it fits a simple model for the specified query point.

For more details, see LIME.

**Example: **`'DataLocality','local'`

**Data Types: **`char`

| `string`

`'NumNeighbors'`

— Number of neighbors of query point1500 (default) | positive integer scalar value

Number of neighbors of the query point, specified as the comma-separated pair
consisting of `'NumNeighbors'`

and a positive integer scalar
value. This argument is valid only when `'DataLocality'`

is `'local'`

.

If you specify a value larger than the number of observations in the predictor
data set (`X`

or the
predictor data in `blackbox`

), then `lime`

uses all observations.

**Example: **`'NumNeighbors',2000`

**Data Types: **`single`

| `double`

`'NumSyntheticData'`

— Number of samples to generate for synthetic data set5000 (default) | positive integer scalar value

Number of samples to generate for the synthetic data set, specified as the
comma-separated pair consisting of `'NumSyntheticData'`

and a
positive integer scalar value. This argument is valid only when `'DataLocality'`

is `'local'`

.

**Example: **`'NumSyntheticData',2500`

**Data Types: **`single`

| `double`

`'KernelWidth'`

— Kernel width0.75 (default) | numeric scalar value

Kernel width of the squared exponential (or Gaussian) kernel function, specified as the comma-separated pair consisting of `'KernelWidth'`

and a numeric scalar value.

The `lime`

function computes distances between the query point and
the samples in the synthetic predictor data set, and then converts the distances to weights
by using the squared exponential kernel function. If you lower the
`'KernelWidth'`

value, then `lime`

uses
weights that are more focused on the samples near the query point. For details, see LIME.

**Example: **`'KernelWidth',0.5`

**Data Types: **`single`

| `double`

`'SimpleModelType'`

— Type of simple model`'linear'`

(default) | `'tree'`

Type of the simple model, specified as the comma-separated pair consisting of `'SimpleModelType'`

and `'linear'`

or `'tree'`

.

`'linear'`

— The software fits a linear model by using`fitrlinear`

for regression or`fitclinear`

for classification.`'tree'`

— The software fits a decision tree model by using`fitrtree`

for regression or`fitctree`

for classification.

**Example: **`'SimpleModelType','tree'`

**Data Types: **`char`

| `string`

`'CategoricalPredictors'`

— Categorical predictors listvector of positive integers | logical vector | character matrix | string array | cell array of character vectors |

`'all'`

Categorical predictors list, specified as the comma-separated pair consisting of
`'CategoricalPredictors'`

and one of the values in this
table.

Value | Description |
---|---|

Vector of positive integers | Each entry in the vector is an index value corresponding to the column of the predictor data that contains a categorical variable. |

Logical vector | A `true` entry means that the corresponding column
of the predictor data is a categorical variable. |

Character matrix | Each row of the matrix is the name of a predictor variable. The names must match the variable names of the predictor data in the form of a table. Pad the names with extra blanks so each row of the character matrix has the same length. |

String array or cell array of character vectors | Each element in the array is the name of a predictor variable. The names must match the variable names of the predictor data in the form of a table. |

`'all'` | All predictors are categorical. |

If you specify

`blackbox`

as a function handle, then`lime`

identifies categorical predictors from the predictor data`X`

or`customSyntheticData`

. If the predictor data is in a table,`lime`

assumes that a variable is categorical if it is a logical vector, unordered categorical vector, character array, string array, or cell array of character vectors. If the predictor data is a matrix,`lime`

assumes that all predictors are continuous. To identify any other predictors as categorical predictors, specify them by using the`'CategoricalPredictors'`

name-value pair argument.If you specify

`blackbox`

as a regression or classification model object, then`lime`

identifies categorical predictors by using the`CategoricalPredictors`

property of the model object.

`lime`

does not support an ordered categorical
predictor.

**Example: **`'CategoricalPredictors','all'`

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `string`

| `cell`

`'Type'`

— Type of machine learning model`'regression`

| `'classification'`

Type of the machine learning model, specified as the comma-separated pair
consisting of `'Type'`

and `'regression`

or
`'classification'`

.

You must specify this argument when you specify `blackbox`

as a function handle. If you specify `blackbox`

as a regression
or classification model object, then `lime`

determines the
`'Type'`

value depending on the model type.

**Example: **`'Type','classification'`

**Data Types: **`char`

| `string`

`'Distance'`

— Distance metriccharacter vector | string scalar | function handle

Distance metric, specified as the comma-separated pair consisting of `'Distance'`

and a character vector, string scalar, or function handle.

If the predictor data includes only continuous variables, then

`lime`

supports these distance metrics.Value Description `'euclidean'`

Euclidean distance.

`'seuclidean'`

Standardized Euclidean distance. Each coordinate difference between observations is scaled by dividing by the corresponding element of the standard deviation,

`S = std(PD,'omitnan')`

, where`PD`

is the predictor data or synthetic predictor data. To specify different scaling, use the`'Scale'`

name-value pair argument.`'mahalanobis'`

Mahalanobis distance using the sample covariance of

`PD`

,`C = cov(PD,'omitrows')`

. To change the value of the covariance matrix, use the`'Cov'`

name-value pair argument.`'cityblock'`

City block distance.

`'minkowski'`

Minkowski distance. The default exponent is 2. To specify a different exponent, use the

`'P'`

name-value pair argument.`'chebychev'`

Chebychev distance (maximum coordinate difference).

`'cosine'`

One minus the cosine of the included angle between points (treated as vectors).

`'correlation'`

One minus the sample correlation between points (treated as sequences of values).

`'spearman'`

One minus the sample Spearman's rank correlation between observations (treated as sequences of values).

`@`

`distfun`

Custom distance function handle. A distance function has the form

wherefunction D2 = distfun(ZI,ZJ) % calculation of distance ...

`ZI`

is a`1`

-by-`t`

vector containing a single observation.`ZJ`

is an`s`

-by-`t`

matrix containing multiple observations.`distfun`

must accept a matrix`ZJ`

with an arbitrary number of observations.`D2`

is an`s`

-by-`1`

vector of distances, and`D2(k)`

is the distance between observations`ZI`

and`ZJ(k,:)`

.

If your data is not sparse, you can generally compute distance more quickly by using a built-in distance metric instead of a function handle.

If the predictor data includes both continuous and categorical variables, then

`lime`

supports these distance metrics.Value Description `'goodall3'`

Modified Goodall distance

`'ofd'`

Occurrence frequency distance

For definitions, see Distance Metrics.

The default value is `'euclidean'`

if the predictor data
includes only continuous variables, or `'goodall3'`

if the
predictor data includes both continuous and categorical variables.

**Example: **`'Distance','ofd'`

**Data Types: **`char`

| `string`

| `function_handle`

`'Cov'`

— Covariance matrix for Mahalanobis distance metricpositive definite matrix

Covariance matrix for the Mahalanobis distance metric, specified as the
comma-separated pair consisting of `'Cov'`

and a
*K*-by-*K* positive definite matrix, where
*K* is the number of predictors.

This argument is valid only if `'Distance'`

is `'mahalanobis'`

.

The default `'Cov'`

value is
`cov(PD,'omitrows')`

, where `PD`

is the
predictor data or synthetic predictor data. If you do not specify the
`'Cov'`

value, then the software uses different covariance
matrices when computing the distances for both the predictor data and the synthetic
predictor data.

**Example: **`'Cov',eye(3)`

**Data Types: **`single`

| `double`

`'P'`

— Exponent for Minkowski distance metric`2`

(default) | positive scalarExponent for the Minkowski distance metric, specified as the comma-separated
pair consisting of `'P'`

and a positive scalar.

This argument is valid only if `'Distance'`

is `'minkowski'`

.

**Example: **`'P',3`

**Data Types: **`single`

| `double`

`'Scale'`

— Scale parameter value for standardized Euclidean distance metricnonnegative numeric vector

Scale parameter value for the standardized Euclidean distance metric, specified
as the comma-separated pair consisting of `'Scale'`

and a
nonnegative numeric vector of length *K*, where
*K* is the number of predictors.

This argument is valid only if `'Distance'`

is `'seuclidean'`

.

The default `'Scale'`

value is
`std(PD,'omitnan')`

, where `PD`

is the predictor
data or synthetic predictor data. If you do not specify the
`'Scale'`

value, then the software uses different scale
parameters when computing the distances for both the predictor data and the
synthetic predictor data.

**Example: **```
'Scale',quantile(X,0.75) -
quantile(X,0.25)
```

**Data Types: **`single`

| `double`

You can specify the following properties when creating a `lime`

object.

`BlackboxModel`

— Machine learning model to be interpretedregression model object | classification model object | function handle

This property is read-only.

Machine learning model to be interpreted, specified as a regression or classification model object or a function handle.

The `blackbox`

argument sets this property.

`CategoricalPredictors`

— Categorical predictor indicesvector of positive integers |

`[]`

This property is read-only.

Categorical predictor
indices, specified as a vector of positive integers. `CategoricalPredictors`

contains index values corresponding to the columns of the predictor data that contain
categorical predictors. If none of the predictors are categorical, then this property is empty
(`[]`

).

If you specify

`blackbox`

using a function handle, then`lime`

identifies categorical predictors from the predictor data`X`

or`customSyntheticData`

. If you specify the`'CategoricalPredictors'`

name-value pair argument, then the argument sets this property.If you specify

`blackbox`

as a regression or classification model object, then`lime`

determines this property by using the`CategoricalPredictors`

property of the model object.

`lime`

does not support an ordered categorical
predictor.

If `'SimpleModelType'`

is `'linear'`

(default), then
`lime`

creates dummy variables for each identified
categorical predictor. `lime`

treats the category of the
specified query point as a reference group and creates one less dummy variable than
the number of categories. For more details, see Dummy Variables with Reference Group.

**Data Types: **`single`

| `double`

`DataLocality`

— Locality of synthetic data for data generation`'global'`

| `'local'`

This property is read-only.

Locality of the synthetic data for data generation, specified as
`'global'`

or `'local'`

.

The `'DataLocality'`

name-value pair argument sets this property.

`NumImportantPredictors`

— Number of important predictors to use in simple modelpositive integer scalar value

This property is read-only.

Number of important predictors to use in the simple model (`SimpleModel`

), specified as a positive integer scalar value.

The `numImportantPredictors`

argument of `lime`

or the
`numImportantPredictors`

argument of `fit`

sets this
property.

**Data Types: **`single`

| `double`

`NumSyntheticData`

— Number of samples in synthetic data setpositive integer scalar value

This property is read-only.

Number of samples in the synthetic data set, specified as a positive integer scalar value.

If you specify

`customSyntheticData`

, then the number of samples in the custom synthetic data set sets this property.Otherwise, the

`'NumSyntheticData'`

name-value pair argument of`lime`

or the`'NumSyntheticData'`

name-value pair argument of`fit`

sets this property.

**Data Types: **`single`

| `double`

`QueryPoint`

— Query pointrow vector of numeric values | single-row table

This property is read-only.

Query point at which `lime`

explains a prediction using the
simple model (`SimpleModel`

), specified as a row vector of numeric values or single-row
table.

The `queryPoint`

argument of `lime`

or the `queryPoint`

argument of `fit`

sets this property.

**Data Types: **`single`

| `double`

| `table`

`Type`

— Type of machine learning model`'regression`

| `'classification'`

This property is read-only.

Type of the machine learning model (`BlackboxModel`

), specified as `'regression`

or
`'classification'`

.

`X`

— Predictor datanumeric matrix | table

This property is read-only.

Predictor data, specified as a numeric matrix or table.

Each row of `X`

corresponds to one observation, and each column
corresponds to one variable.

If you specify the

`X`

argument, then the argument sets this property.If you specify the

`customSyntheticData`

argument, then this property is empty.If you specify

`blackbox`

as a full machine learning model object and do not specify`X`

or`customSyntheticData`

, then this property value is the predictor data used to train`blackbox`

.

**Data Types: **`single`

| `double`

| `table`

The software computes the following properties.

`BlackboxFitted`

— Prediction for query point computed by machine learning modelscalar

This property is read-only.

Prediction for the query point computed by the machine learning model (`BlackboxModel`

), specified as a scalar.

**Data Types: **`single`

| `double`

| `categorical`

| `logical`

| `char`

| `string`

| `cell`

`Fitted`

— Predictions for synthetic predictor data computed by machine learning modelvector

This property is read-only.

Predictions for synthetic predictor data computed by the machine learning model
(`BlackboxModel`

), specified as a vector.

**Data Types: **`single`

| `double`

| `categorical`

| `logical`

| `char`

| `string`

| `cell`

`ImportantPredictors`

— Important predictor indicesvector of positive integers

This property is read-only.

Important predictor indices, specified as a vector of positive integers.
`ImportantPredictors`

contains the index values corresponding to
the columns of the predictors used in the simple model (`SimpleModel`

).

**Data Types: **`single`

| `double`

`SimpleModel`

— Simple model`RegressionLinear`

model object | `RegressionTree`

model object | `ClassificationLinear`

model object | `ClassificationTree`

model objectThis property is read-only.

Simple model, specified as a `RegressionLinear`

, `RegressionTree`

, `ClassificationLinear`

, or `ClassificationTree`

model object. `lime`

determines the
type of simple model object depending on the type of the machine learning model
(`Type`

) and
the type of the simple model (`'SimpleModelType'`

).

`SimpleModelFitted`

— Prediction for query point computed by simple modelscalar

This property is read-only.

Prediction for the query point computed by the simple model (`SimpleModel`

), specified as a scalar.

If `SimpleModel`

is `ClassificationLinear`

, then the
`SimpleModelFitted`

value is 1 or –1.

The

`SimpleModelFitted`

value is 1 if the prediction from the simple model is the same as`BlackboxFitted`

(prediction from the machine learning model).The

`SimpleModelFitted`

value is –1 if the prediction from the simple model is different from`BlackboxFitted`

. If the`BlackboxFitted`

value is`A`

, then the`plot`

function displays the`SimpleModelFitted`

value as`Not A`

.

**Data Types: **`single`

| `double`

| `categorical`

| `logical`

| `char`

| `string`

| `cell`

`SyntheticData`

— Synthetic predictor datanumeric matrix | table

This property is read-only.

Synthetic predictor data, specified as a numeric matrix or a table.

If you specify the

`customSyntheticData`

input argument, then the argument sets this property.Otherwise,

`lime`

estimates distribution parameters from the predictor data`X`

and generates a synthetic predictor data set.

**Data Types: **`single`

| `double`

| `table`

Train a classification model and create a `lime`

object that uses a decision tree simple model. When you create a `lime`

object, specify a query point and the number of important predictors so that the software generates samples of a synthetic data set and fits a simple model for the query point with important predictors. Then display the estimated predictor importance in the simple model by using the object function `plot`

.

Load the `CreditRating_Historical`

data set. The data set contains customer IDs and their financial ratios, industry labels, and credit ratings.

`tbl = readtable('CreditRating_Historical.dat');`

Display the first three rows of the table.

head(tbl,3)

`ans=`*3×8 table*
ID WC_TA RE_TA EBIT_TA MVE_BVTD S_TA Industry Rating
_____ _____ _____ _______ ________ _____ ________ ______
62394 0.013 0.104 0.036 0.447 0.142 3 {'BB'}
48608 0.232 0.335 0.062 1.969 0.281 8 {'A' }
42444 0.311 0.367 0.074 1.935 0.366 1 {'A' }

Create a table of predictor variables by removing the columns of customer IDs and ratings from `tbl`

.

tblX = removevars(tbl,["ID","Rating"]);

Train a blackbox model of credit ratings by using the `fitcecoc`

function.

blackbox = fitcecoc(tblX,tbl.Rating,'CategoricalPredictors','Industry');

Create a `lime`

object that explains the prediction for the last observation using a decision tree simple model. Specify `'NumImportantPredictors'`

as six to find at most 6 important predictors. If you specify the `'QueryPoint'`

and `'NumImportantPredictors'`

values when you create a `lime`

object, then the software generates samples of a synthetic data set and fits a simple interpretable model to the synthetic data set. Your results might vary from those shown because of randomness of `lime`

. You can set a random seed by using `rng`

for reproducibility.

queryPoint = tblX(end,:)

`queryPoint=`*1×6 table*
WC_TA RE_TA EBIT_TA MVE_BVTD S_TA Industry
_____ _____ _______ ________ ____ ________
0.239 0.463 0.065 2.924 0.34 2

results = lime(blackbox,'QueryPoint',queryPoint,'NumImportantPredictors',6, ... 'CategoricalPredictors','Industry','SimpleModelType','tree')

results = lime with properties: BlackboxModel: [1×1 ClassificationECOC] DataLocality: 'global' CategoricalPredictors: 6 Type: 'classification' X: [3932×6 table] QueryPoint: [1×6 table] NumImportantPredictors: 6 NumSyntheticData: 5000 SyntheticData: [5000×6 table] Fitted: {5000×1 cell} SimpleModel: [1×1 ClassificationTree] ImportantPredictors: [2 4] BlackboxFitted: {'AA'} SimpleModelFitted: {'AA'}

Plot the `lime`

object `results`

by using the object function `plot`

. To display an existing underscore in any predictor name, change the `TickLabelInterpreter`

value of the axes to `'none'`

.

```
f = plot(results);
f.CurrentAxes.TickLabelInterpreter = 'none';
```

The plot displays two predictions for the query point, which correspond to the BlackboxFitted property and the SimpleModelFitted property of `results`

.

The horizontal bar graph shows the sorted predictor importance values. `lime`

finds the financial ratio variables `EBIT_TA`

and `WC_TA`

as important predictors for the query point.

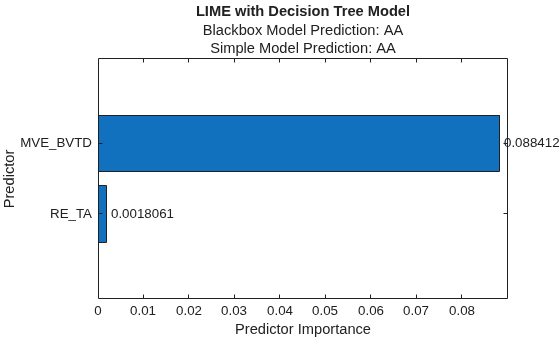

You can read the bar lengths by using data tips or Bar Properties. For example, you can find `Bar`

objects by using the `findobj`

function and add labels to the ends of the bars by using the `text`

function.

b = findobj(f,'Type','bar'); text(b.YEndPoints+0.001,b.XEndPoints,string(b.YData))

Alternatively, you can display the coefficient values in a table with the predictor variable names.

imp = b.YData; flipud(array2table(imp', ... 'RowNames',f.CurrentAxes.YTickLabel,'VariableNames',{'Predictor Importance'}))

`ans=`*2×1 table*
Predictor Importance
____________________
MVE_BVTD 0.088695
RE_TA 0.0018228

Train a regression model and create a `lime`

object that uses a linear simple model. When you create a `lime`

object, if you do not specify a query point and the number of important predictors, then the software generates samples of a synthetic data set but does not fit a simple model. Use the object function `fit`

to fit a simple model for a query point. Then display the coefficients of the fitted linear simple model by using the object function `plot`

.

Load the `carbig`

data set, which contains measurements of cars made in the 1970s and early 1980s..

`load carbig`

Create a table containing the predictor variables `Acceleration`

, `Cylinders`

, and so on, as well as the response variable `MPG`

.

tbl = table(Acceleration,Cylinders,Displacement,Horsepower,Model_Year,Weight,MPG);

Removing missing values in a training set can help reduce memory consumption and speed up training for the `fitrkernel`

function. Remove missing values in `tbl`

.

tbl = rmmissing(tbl);

Create a table of predictor variables by removing the response variable from `tbl`

.

`tblX = removevars(tbl,'MPG');`

Train a blackbox model of `MPG`

by using the `fitrkernel`

function, and create a `lime`

object. Specify a predictor data set because `mdl`

does not contain predictor data. Your results might vary from those shown because of randomness of `fitrkernel`

and `lime`

. You can set a random seed by using `rng`

for reproducibility.

mdl = fitrkernel(tblX,tbl.MPG,'CategoricalPredictors',[2 5]); results = lime(mdl,tblX,'CategoricalPredictors',[2 5])

results = lime with properties: BlackboxModel: [1×1 RegressionKernel] DataLocality: 'global' CategoricalPredictors: [2 5] Type: 'regression' X: [392×6 table] QueryPoint: [] NumImportantPredictors: [] NumSyntheticData: 5000 SyntheticData: [5000×6 table] Fitted: [5000×1 double] SimpleModel: [] ImportantPredictors: [] BlackboxFitted: [] SimpleModelFitted: []

`results`

contains the generated synthetic data set. The `SimpleModel`

property is empty (`[]`

).

Fit a linear simple model for the first observation in `tblX`

. Specify the number of important predictors to find as 3.

queryPoint = tblX(1,:)

`queryPoint=`*1×6 table*
Acceleration Cylinders Displacement Horsepower Model_Year Weight
____________ _________ ____________ __________ __________ ______
12 8 307 130 70 3504

results = fit(results,queryPoint,3);

Plot the `lime`

object `results`

by using the object function `plot`

. To display an existing underscore in any predictor name, change the `TickLabelInterpreter`

value of the axes to `'none'`

.

```
f = plot(results);
f.CurrentAxes.TickLabelInterpreter = 'none';
```

The plot displays two predictions for the query point, which correspond to the BlackboxFitted property and the SimpleModelFitted property of `results`

.

The horizontal bar graph shows the coefficient values of the simple model, sorted by their absolute values. LIME finds `Horsepower`

, `Model_Year`

, and `Cylinders`

as important predictors for the query point.

Train a classification model and create a `lime`

object that uses a decision tree simple model. Fit multiple models for multiple query points.

Load the `CreditRating_Historical`

data set. The data set contains customer IDs and their financial ratios, industry labels, and credit ratings.

`tbl = readtable('CreditRating_Historical.dat');`

Create a table of predictor variables by removing the columns of customer IDs and ratings from `tbl`

.

tblX = removevars(tbl,["ID","Rating"]);

Train a blackbox model of credit ratings by using the `fitcecoc`

function.

blackbox = fitcecoc(tblX,tbl.Rating,'CategoricalPredictors','Industry')

blackbox = ClassificationECOC PredictorNames: {'WC_TA' 'RE_TA' 'EBIT_TA' 'MVE_BVTD' 'S_TA' 'Industry'} ResponseName: 'Y' CategoricalPredictors: 6 ClassNames: {'A' 'AA' 'AAA' 'B' 'BB' 'BBB' 'CCC'} ScoreTransform: 'none' BinaryLearners: {21×1 cell} CodingName: 'onevsone' Properties, Methods

Create a `lime`

object with the `blackbox`

model. Your results might vary from those shown because of randomness of `lime`

. You can set a random seed by using `rng`

for reproducibility.

results = lime(blackbox,'CategoricalPredictors','Industry');

Find two query points whose true rating values are `AAA`

and `B`

, respectively.

queryPoint(1,:) = tblX(find(strcmp(tbl.Rating,'AAA'),1),:); queryPoint(2,:) = tblX(find(strcmp(tbl.Rating,'B'),1),:)

`queryPoint=`*2×6 table*
WC_TA RE_TA EBIT_TA MVE_BVTD S_TA Industry
_____ _____ _______ ________ _____ ________
0.121 0.413 0.057 3.647 0.466 12
0.019 0.009 0.042 0.257 0.119 1

Fit a linear simple model for the first query point. Set the number of important predictors to 4.

newresults1 = fit(results,queryPoint(1,:),4);

Plot the LIME results `newresults1`

for the first query point. To display an existing underscore in any predictor name, change the `TickLabelInterpreter`

value of the axes to `'none'`

.

```
f1 = plot(newresults1);
f1.CurrentAxes.TickLabelInterpreter = 'none';
```

Fit a linear decision tree model for the first query point.

newresults2 = fit(results,queryPoint(1,:),6,'SimpleModelType','tree'); f2 = plot(newresults2); f2.CurrentAxes.TickLabelInterpreter = 'none';

The simple models in `newresults1`

and `newresults2`

both find `MVE_BVTD`

and `RE_TA`

as important predictors.

Fit a linear simple model for the second query point, and plot the LIME results for the second query point.

```
newresults3 = fit(results,queryPoint(2,:),4);
f3 = plot(newresults3);
f3.CurrentAxes.TickLabelInterpreter = 'none';
```

The prediction from the `blackbox`

model is `B`

, but the prediction from the simple model is not `B`

. When the two predictions are not the same, you can specify a smaller `'KernelWidth'`

value. The software fits a simple model using weights that are more focused on the samples near the query point. If a query point is an outlier or is located near a decision boundary, then the two prediction values can be different, even if you specify a small `'KernelWidth'`

value. In such a case, you can change other name-value pair arguments. For example, you can generate a local synthetic data set (specify `'DataLocality'`

of `lime`

as `'local'`

) for the query point and increase the number of samples (`'NumSyntheticData'`

of `lime`

or `fit`

) in the synthetic data set. You can also use a different distance metric (`'Distance'`

of `lime`

or `fit`

).

Fit a linear simple model with a small `'KernelWidth'`

value.

newresults4 = fit(results,queryPoint(2,:),4,'KernelWidth',0.01); f4 = plot(newresults4); f4.CurrentAxes.TickLabelInterpreter = 'none';

The credit ratings for the first and second query points are `AAA`

and `B`

, respectively. The simple models in `newresults1`

and `newresults4`

both find `MVE_BVTD`

, `RE_TA`

, and `WC_TA`

as important predictors. However, their coefficient values are different. The plots show that these predictors act differently depending on the credit ratings.

A distance metric is a function that defines a distance between two
observations. `lime`

supports various distance metrics for
continuous variables and a mix of continuous and categorical variables.

Distance metrics for continuous variables

Given an

*mx*-by-*n*data matrix*X*, which is treated as*mx*(1-by-*n*) row vectors*x*,_{1}*x*, ...,_{2}*x*, and an_{mx}*my*-by-*n*data matrix*Y*, which is treated as*my*(1-by-*n*) row vectors*y*,_{1}*y*, ...,_{2}*y*, the various distances between the vector_{my}*x*and_{s}*y*are defined as follows:_{t}Euclidean distance

$${d}_{st}^{2}=({x}_{s}-{y}_{t})({x}_{s}-{y}_{t}{)}^{\prime}.$$

The Euclidean distance is a special case of the Minkowski distance, where

*p*= 2.Standardized Euclidean distance

$${d}_{st}^{2}=({x}_{s}-{y}_{t}){V}^{-1}({x}_{s}-{y}_{t}{)}^{\prime},$$

where

*V*is the*n*-by-*n*diagonal matrix whose*j*th diagonal element is (*S*(*j*))^{2}, where*S*is a vector of scaling factors for each dimension.Mahalanobis distance

$${d}_{st}^{2}=({x}_{s}-{y}_{t}){C}^{-1}({x}_{s}-{y}_{t}{)}^{\prime},$$

where

*C*is the covariance matrix.City block distance

$${d}_{st}={\displaystyle \sum _{j=1}^{n}\left|{x}_{sj}-{y}_{tj}\right|}.$$

The city block distance is a special case of the Minkowski distance, where

*p*= 1.Minkowski distance

$${d}_{st}=\sqrt[p]{{\displaystyle \sum _{j=1}^{n}{\left|{x}_{sj}-{y}_{tj}\right|}^{p}}}.$$

For the special case of

*p*= 1, the Minkowski distance gives the city block distance. For the special case of*p*= 2, the Minkowski distance gives the Euclidean distance. For the special case of*p*= ∞, the Minkowski distance gives the Chebychev distance.Chebychev distance

$${d}_{st}={\mathrm{max}}_{j}\left\{\left|{x}_{sj}-{y}_{tj}\right|\right\}.$$

The Chebychev distance is a special case of the Minkowski distance, where

*p*= ∞.Cosine distance

$${d}_{st}=\left(1-\frac{{x}_{s}{{y}^{\prime}}_{t}}{\sqrt{\left({x}_{s}{{x}^{\prime}}_{s}\right)\left({y}_{t}{{y}^{\prime}}_{t}\right)}}\right).$$

Correlation distance

$${d}_{st}=1-\frac{\left({x}_{s}-{\overline{x}}_{s}\right){\left({y}_{t}-{\overline{y}}_{t}\right)}^{\prime}}{\sqrt{\left({x}_{s}-{\overline{x}}_{s}\right){\left({x}_{s}-{\overline{x}}_{s}\right)}^{\prime}}\sqrt{\left({y}_{t}-{\overline{y}}_{t}\right){\left({y}_{t}-{\overline{y}}_{t}\right)}^{\prime}}},$$

where

$${\overline{x}}_{s}=\frac{1}{n}{\displaystyle \sum _{j}{x}_{sj}}$$

and

$${\overline{y}}_{t}=\frac{1}{n}{\displaystyle \sum _{j}{y}_{tj}}.$$

Spearman distance

$${d}_{st}=1-\frac{\left({r}_{s}-{\overline{r}}_{s}\right){\left({r}_{t}-{\overline{r}}_{t}\right)}^{\prime}}{\sqrt{\left({r}_{s}-{\overline{r}}_{s}\right){\left({r}_{s}-{\overline{r}}_{s}\right)}^{\prime}}\sqrt{\left({r}_{t}-{\overline{r}}_{t}\right){\left({r}_{t}-{\overline{r}}_{t}\right)}^{\prime}}},$$

where

*r*is the rank of_{sj}*x*taken over_{sj}*x*_{1j},*x*_{2j}, ...*x*, as computed by_{mx,j}`tiedrank`

.*r*is the rank of_{tj}*y*taken over_{tj}*y*_{1j},*y*_{2j}, ...*y*, as computed by_{my,j}`tiedrank`

.*r*and_{s}*r*are the coordinate-wise rank vectors of_{t}*x*and_{s}*y*, that is,_{t}*r*= (_{s}*r*_{s}_{1},*r*_{s}_{2}, ...*r*) and_{sn}*r*= (_{t}*r*_{t1},*r*_{t2}, ...*r*)._{tn}$${\overline{r}}_{s}=\frac{1}{n}{\displaystyle \sum _{j}{r}_{sj}}=\frac{\left(n+1\right)}{2}$$.

$${\overline{r}}_{t}=\frac{1}{n}{\displaystyle \sum _{j}{r}_{tj}}=\frac{\left(n+1\right)}{2}$$.

Distance metrics for a mix of continuous and categorical variables

Modified Goodall distance

This distance is a variant of the Goodall distance, which assigns a small distance if the matching values are infrequent regardless of the frequencies of the other values. For mismatches, the distance contribution of the predictor is 1/(number of variables).

Occurrence frequency distance

For a match, the occurrence frequency distance assigns zero distance. For a mismatch, the occurrence frequency distance assigns a higher distance on a less frequent value and a lower distance on a more frequent value.

To explain a prediction of a machine learning model using LIME [1], the software generates a synthetic data
set and fits a simple interpretable model to the synthetic data set by using
`lime`

and `fit`

, as described in steps
1–5.

If you specify the

`queryPoint`

and`numImportantPredictors`

values of`lime`

, then the`lime`

function performs all steps.If you do not specify

`queryPoint`

and`numImportantPredictors`

and specify`'DataLocality'`

as`'global'`

(default), then the`lime`

function generates a synthetic data set (steps 1–2), and the`fit`

function fits a simple model (steps 3–5).If you do not specify

`queryPoint`

and`numImportantPredictors`

and specify`'DataLocality'`

as`'local'`

, then the`fit`

function performs all steps.

The `lime`

and `fit`

functions perform these
steps:

Generate a synthetic predictor data set

*X*using a multivariate normal distribution for continuous variables and a multinomial distribution for each categorical variable. You can specify the number of samples to generate by using the_{s}`'NumSyntheticData'`

name-value pair argument.If

`'DataLocality'`

is`'global'`

(default), then the software estimates the distribution parameters from the whole predictor data set (`X`

or predictor data in`blackbox`

).If

`'DataLocality'`

is`'local'`

, then the software estimates the distribution parameters using the*k*-nearest neighbors of the query point, where*k*is the`'NumNeighbors'`

value. You can specify a distance metric to find the nearest neighbors by using the`'Distance'`

name-value pair argument.

The software ignores missing values in the predictor data set when estimating the distribution parameters.

Alternatively, you can provide a pregenerated, custom synthetic predictor data set by using the

`customSyntheticData`

input argument of`lime`

.Compute the predictions

*Y*for the synthetic data set_{s}*X*. The predictions are predicted responses for regression or classified labels for classification. The software uses the_{s}`predict`

function of the`blackbox`

model to compute the predictions. If you specify`blackbox`

as a function handle, then the software computes the predictions by using the function handle.Compute the distances

*d*between the query point and the samples in the synthetic predictor data set using the distance metric specified by`'Distance'`

.Compute the weight values

*w*of the samples in the synthetic predictor data set with respect to the query point_{q}*q*using the squared exponential (or Gaussian) kernel function$${w}_{q}({x}_{s})=\mathrm{exp}\left(-\frac{1}{2}{\left(\frac{d({x}_{s},q)}{\sqrt{p}\text{\hspace{0.05em}}\sigma}\right)}^{2}\right).$$

*x*is a sample in the synthetic predictor data set_{s}*X*._{s}*d*(*x*,_{s}*q*) is the distance between the sample*x*and the query point_{s}*q*.*p*is the number of predictors in*X*._{s}*σ*is the kernel width, which you can specify by using the`'KernelWidth'`

name-value pair argument. The default`'KernelWidth'`

value is 0.75.

The weight value at the query point is 1, and then it converges to zero as the distance value increases. The

`'KernelWidth'`

value controls how fast the weight value converges to zero. The lower the`'KernelWidth'`

value, the faster the weight value converges to zero. Therefore, the algorithm gives more weight to samples near the query point. Because this algorithm uses such weight values, the selected important predictors and fitted simple model effectively explain the predictions for the synthetic data locally, around the query point.Fit a simple model.

If

`'SimpleModelType'`

is`'linear'`

(default), then the software selects important predictors and fits a linear model of the selected important predictors.Select

*n*important predictors ($${\tilde{X}}_{s}$$) by using the group orthogonal matching pursuit (OMP) algorithm [2][3], where*n*is the`numImportantPredictors`

value. This algorithm uses the synthetic predictor data set (*X*), predictions (_{s}*Y*), and weight values (_{s}*w*)._{q}Fit a linear model of the selected important predictors ($${\tilde{X}}_{s}$$) to the predictions (

*Y*) using the weight values (_{s}*w*). The software uses_{q}`fitrlinear`

for regression or`fitclinear`

for classification. For a multiclass model, the software uses the one-versus-all scheme to construct a binary classification problem. The positive class is the predicted class for the query point from the`blackbox`

model, and the negative class refers to the other classes.

If

`'SimpleModelType'`

is`'tree'`

, then the software fits a decision tree model by using`fitrtree`

for regression or`fitctree`

for classification. The software specifies the maximum number of decision splits (or branch nodes) as the number of important predictors so that the fitted decision tree uses at most the specified number of predictors.

[1] Ribeiro, Marco Tulio, S.
Singh, and C. Guestrin. "'Why Should I Trust You?': Explaining the Predictions of Any
Classifier." *In Proceedings of the 22nd ACM SIGKDD International Conference on
Knowledge Discovery and Data Mining*, 1135–44. San Francisco California USA: ACM,
2016.

[2] Świrszcz, Grzegorz,
Naoki Abe, and Aurélie C. Lozano. "Grouped Orthogonal Matching Pursuit for Variable Selection
and Prediction." *Advances in Neural Information Processing Systems*
(2009): 1150–58.

[3] Lozano, Aurélie C.,
Grzegorz Świrszcz, and Naoki Abe. "Group Orthogonal Matching Pursuit for Logistic Regression."
*Proceedings of the Fourteenth International Conference on Artificial Intelligence
and Statistics* (2011): 452–60.

A modified version of this example exists on your system. Do you want to open this version instead?

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

Select web siteYou can also select a web site from the following list:

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

- América Latina (Español)
- Canada (English)
- United States (English)

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
